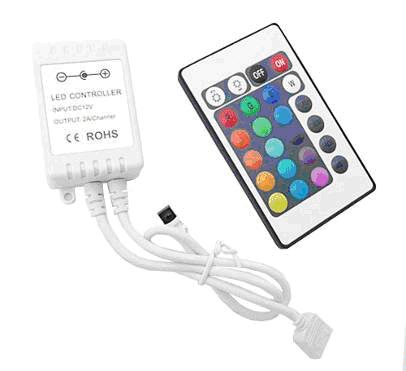

24-key RGB Controller

Model: IR24 key
● Working temperature: -20-60 ℃
● Supply voltage: DC 5V, 12V, 24V optional (order specify the required voltage)
● Sort selection: RGB, BRG, GRB, BGR (optional)
● Function mode: 20 kinds
● Output: 3 channels
● connection mode: common anode, common cathode (optional)
● Dimensions: L61ΧW35ΧH22 mm
● Individual packaging sizes: 62 * 40 * 93mm
● Weight: 49g
● static power consumption: <1W
● Maximum load current: 2A per channel
● Output Power: 5V <30W, 12V <72W, 24V <144W
